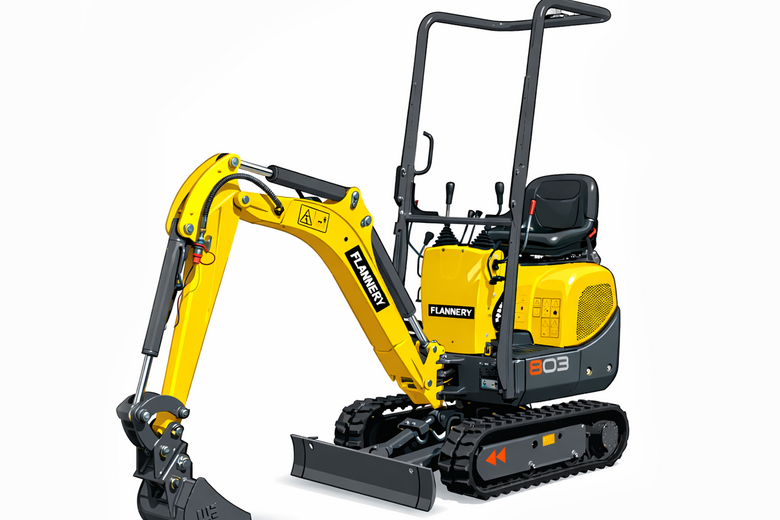

Wacker Neuson Mini-Excavator 803

The Wacker Neuson 803 Micro Excavator is a powerful and ultra-compact 1-ton mini digger designed for construction, landscaping, indoor demolition, and tight access projects. With its hydraulically telescoping undercarriage (700–860 mm), the 803 easily passes through narrow gates and doorways while expanding for increased stability during operation. Powered by a reliable Yanmar diesel engine, this micro excavator delivers impressive digging performance, smooth hydraulic control, and exceptional manoeuvrability, making it an ideal solution for contractors working in confined spaces.

Machine Width: 700 mm

Machine Length: 2828 mm

Machine Height: 2261 mm

Specifications

Machine Weight: 1,029 – 1,089 kg
Engine Power: 9.6 kW (13 HP) kW
Type: 0.8T Micro Excavator
Digging Height: 2857 mm
Dump Height: 2012 mm
Digging Depth: 1763 mm
Digging Reach: 3.03 mm
Bucket Capacity: 0.08 m³ kg
Maximum Reach: mm

Quick Email

Download Specifications

Add to quote

Sustainability

The Wacker Neuson 803 features a fuel-efficient Yanmar diesel engine designed to deliver high performance while keeping fuel consumption and emissions low. Its compact size and efficient hydraulics reduce operating costs and environmental impact on small construction and landscaping projects.

Innovation

The machine features a hydraulically telescoping undercarriage that retracts to 700 mm for narrow access and expands to 860 mm for improved stability while digging. This innovative design allows operators to work efficiently in confined environments without sacrificing machine balance or digging power.

Safety

Operator safety is enhanced with a foldable ROPS-certified safety bar, stable chassis design, and excellent visibility from the operator station. The low centre of gravity and expandable track width help maintain stability during digging, lifting, and travel on uneven ground.

Features

Hydraulically expanding undercarriage (700–860 mm). Foldable ROPS-certified safety bar. Compact design ideal for narrow access and indoor work. Powerful Yanmar 3-cylinder diesel engine. Smooth and precise hydraulic controls. Rubber tracks to protect surfaces and flooring. Integrated dozer blade for grading and stability. Excellent power-to-weight ratio for a 1-ton excavator.
